Pallet Shuttle System

What Is a
Pallet Shuttle System?

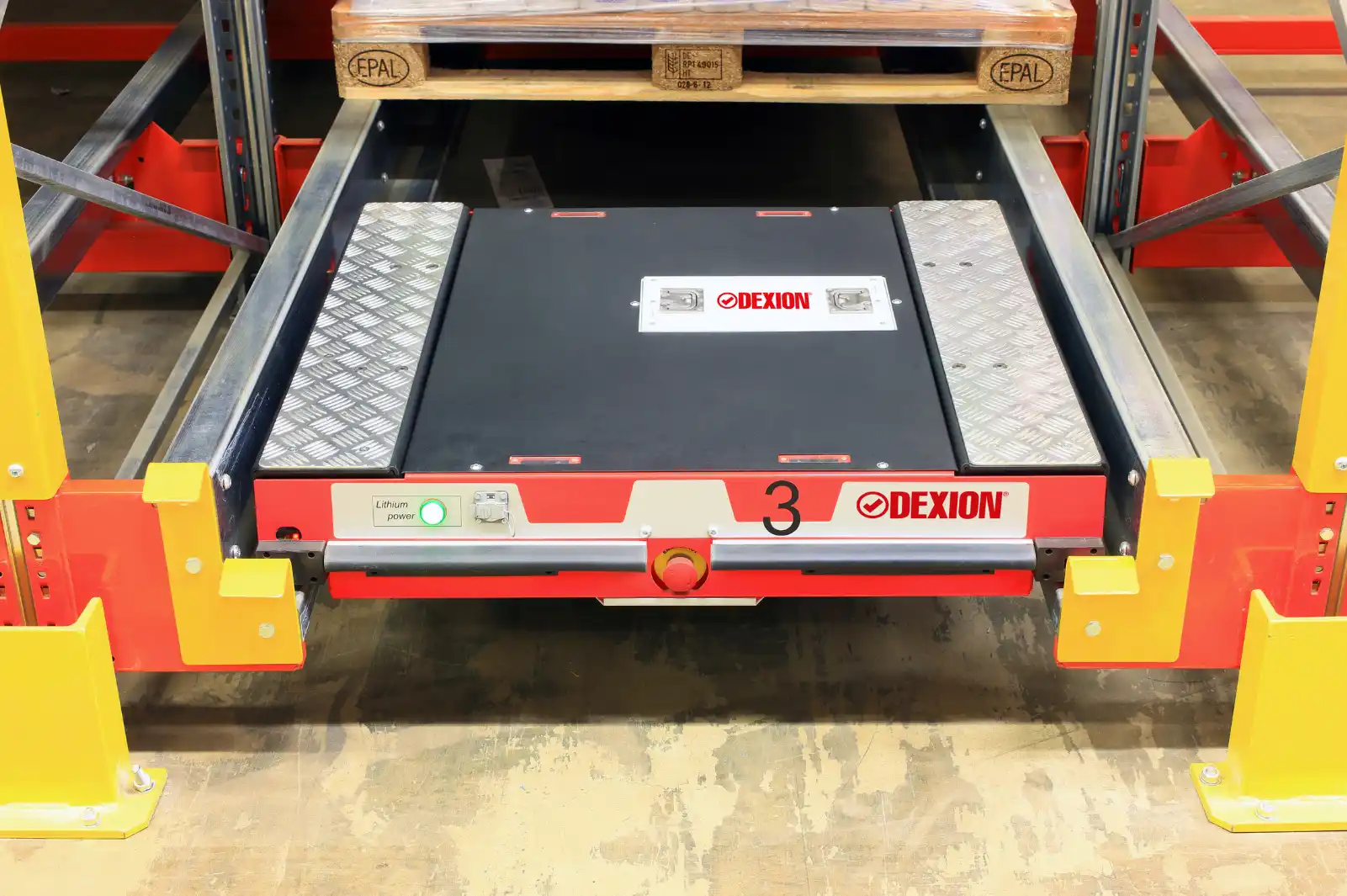

A pallet shuttle system is a high-density, semi-automated racking solution that streamlines pallet storage in deep-lane configurations. Instead of forklifts entering the racking structure, a motorised shuttle travels along rails to deposit and retrieve pallets. Controlled remotely by an operator using a tablet or handheld device, the shuttle improves safety, speeds up operations, and reduces the risk of damage.

Shuttle racking systems are ideal for warehouses with a high volume of goods and a need to optimise space without sacrificing throughput. From cold storage to FMCG and distribution hubs, these systems help businesses scale storage vertically and efficiently.

Learn more about automated storage systems in warehousing (HSE).

Contact Us

Key Benefits of Pallet Shuttle Systems

Maximise Storage Density

By eliminating the need for multiple forklift-access aisles, shuttle racking systems enable deep-lane storage of up to 40 metres per channel. This significantly increases pallet positions within the same footprint, making it an ideal solution for businesses with limited space and high stock volumes.

Improve Safety and Efficiency

Because forklifts no longer need to enter the racking structure, there’s a lower risk of collisions and structural damage. Operators remain outside the system, which improves warehouse safety while reducing wear and tear on both vehicles and racking components.

High-Speed Operation

With shuttle speeds of up to 90 m/min when unloaded and 45 m/min when carrying pallets, this system helps speed up the entire storage and retrieval process. The increased efficiency reduces bottlenecks and keeps goods moving — even during peak periods.

Flexible FIFO and LIFO Handling

The pallet shuttle system is adaptable for both First-In, First-Out (FIFO) and Last-In, First-Out (LIFO) inventory models. It can be adjusted for different pallet sizes and weights, making it suitable for cold storage, food distribution, and other high density pallet racking applications.
